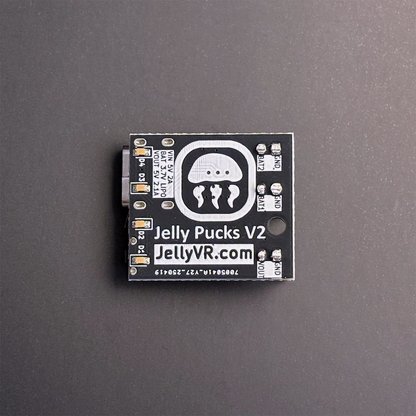

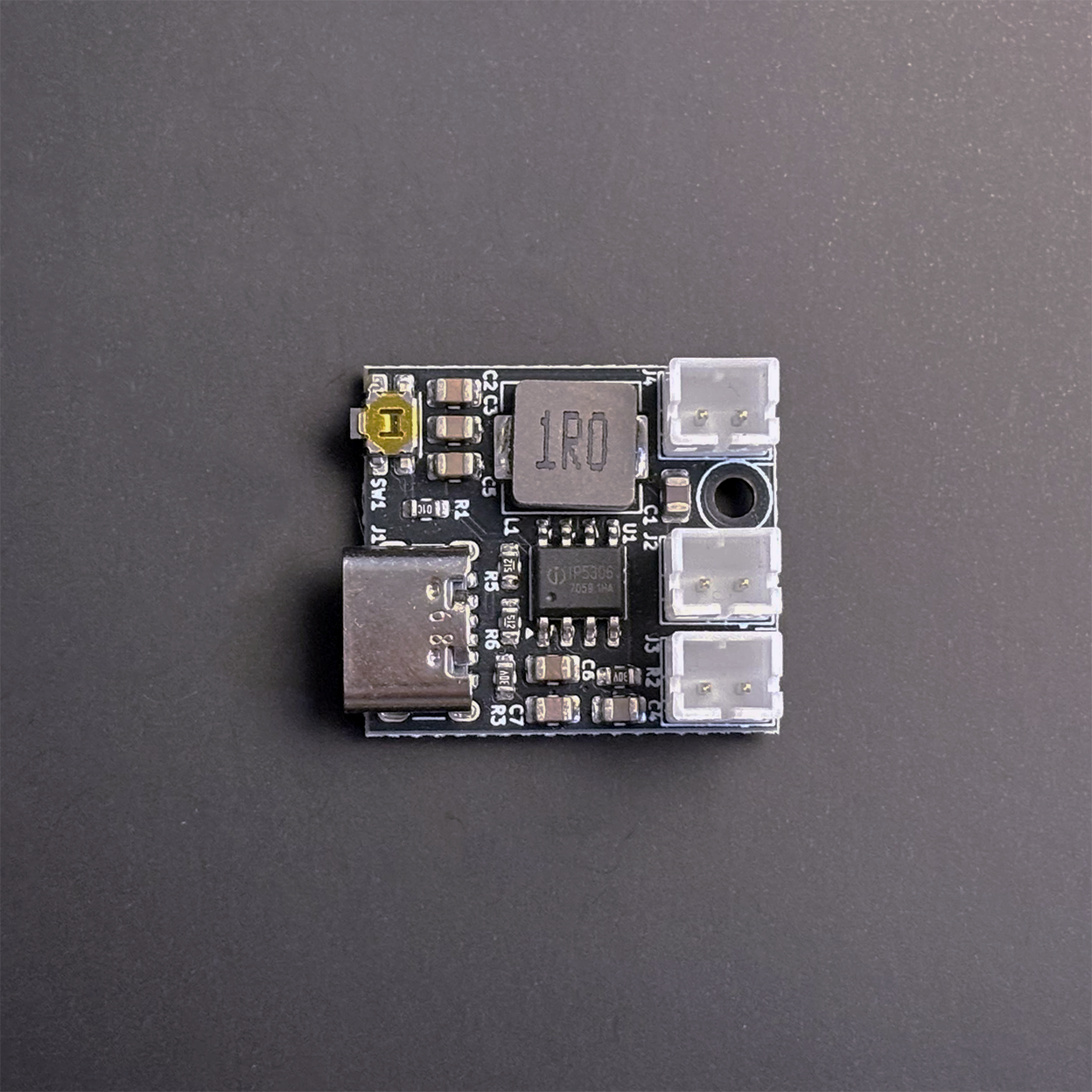

Charging/Pogo Pin PCB - Jelly Pucks V2

Charging/Pogo Pin PCB - Jelly Pucks V2

100,00 CZK
100,00 CZK
Sale Sold out
Taxes included. Shipping calculated at checkout.
Variant

EU Shipped from within the EU, no customs fees or import duties.

⚙️ These are spare parts for Jelly Pucks V2

✅ Custom Jelly Puck V2 PCB
✅ Supports dual 3.7V LiPo cells in parallel
✅ USB-C input/output (5V 2A) with pass-through charging
✅ Screw-mounted, no glue

📦 Included with 2 pin:

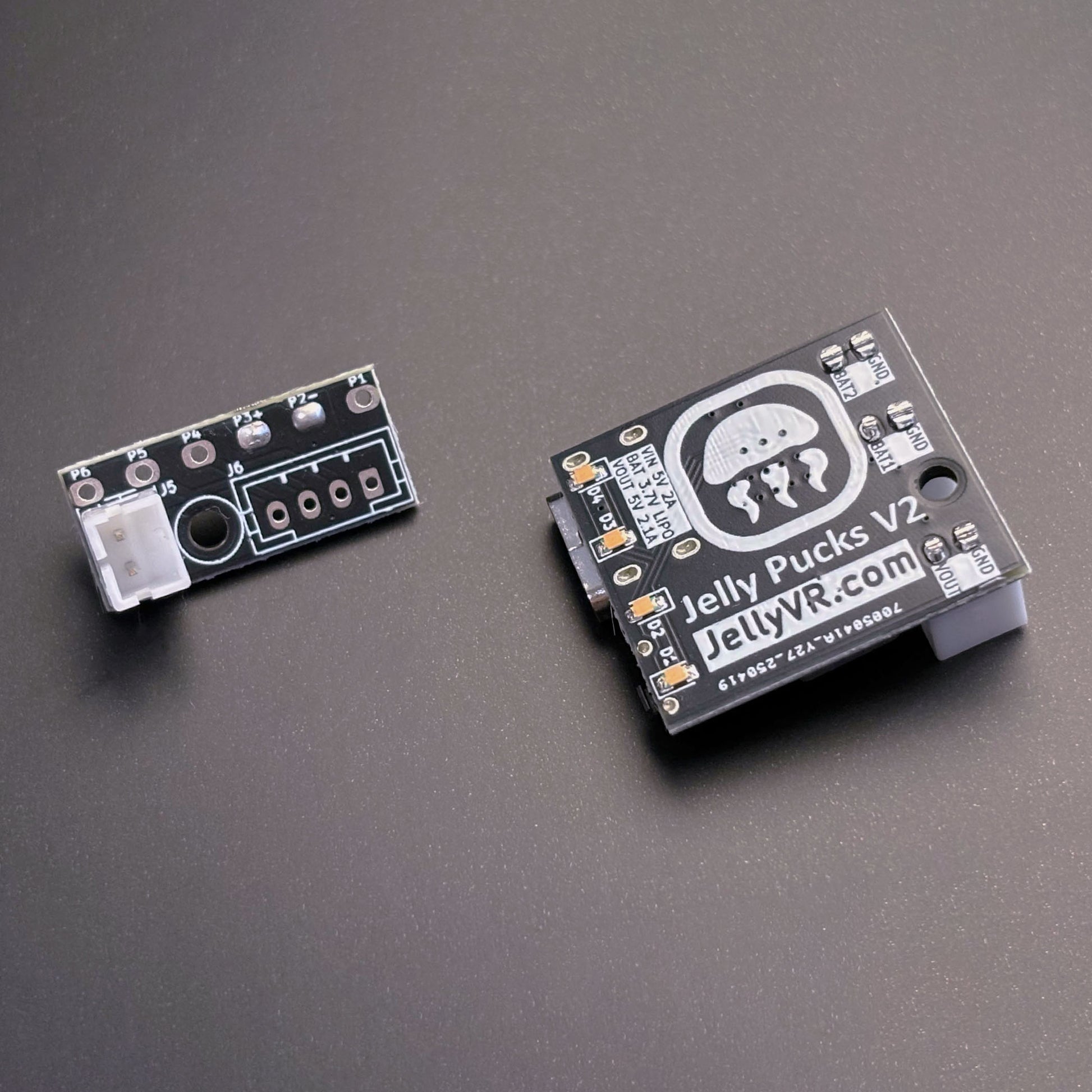

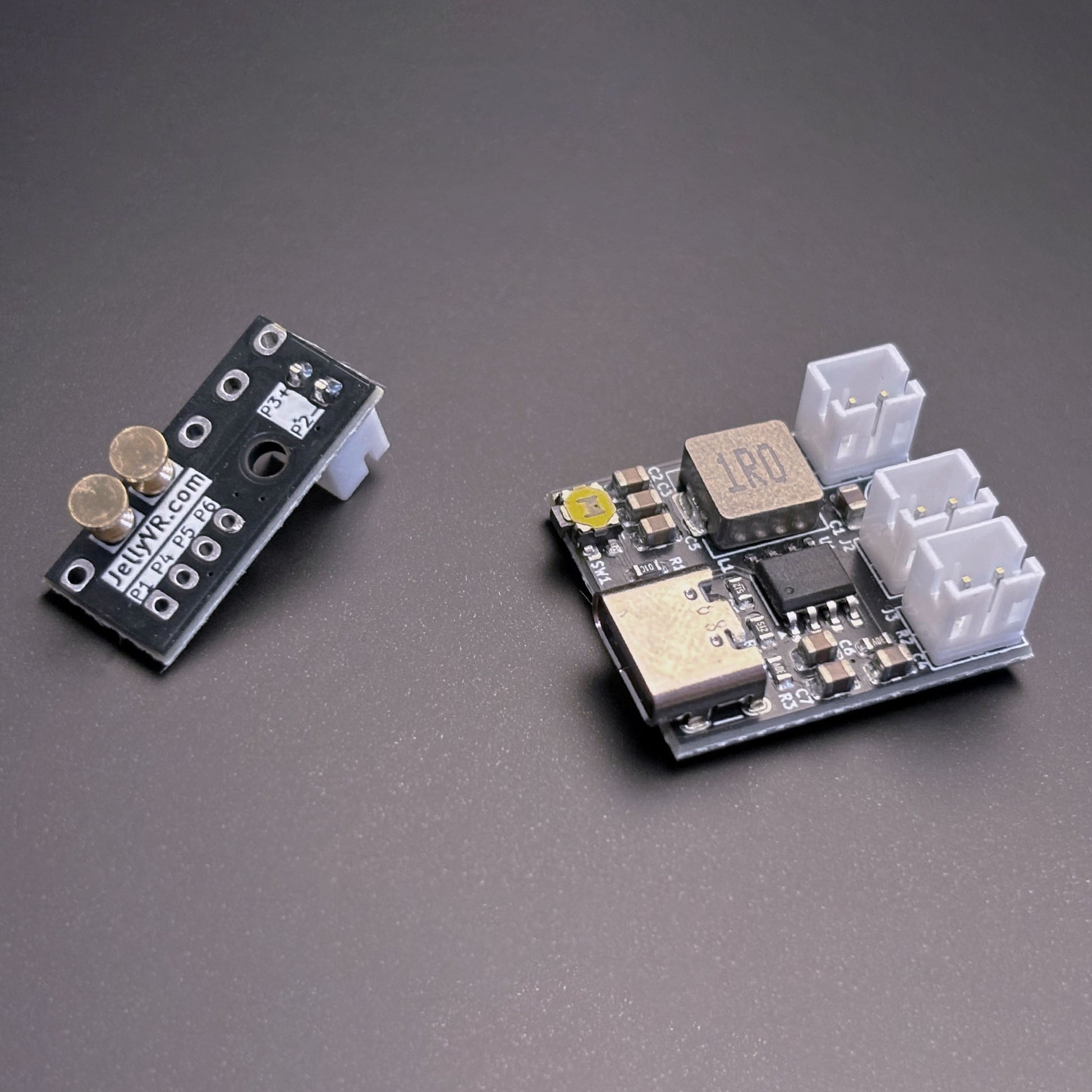

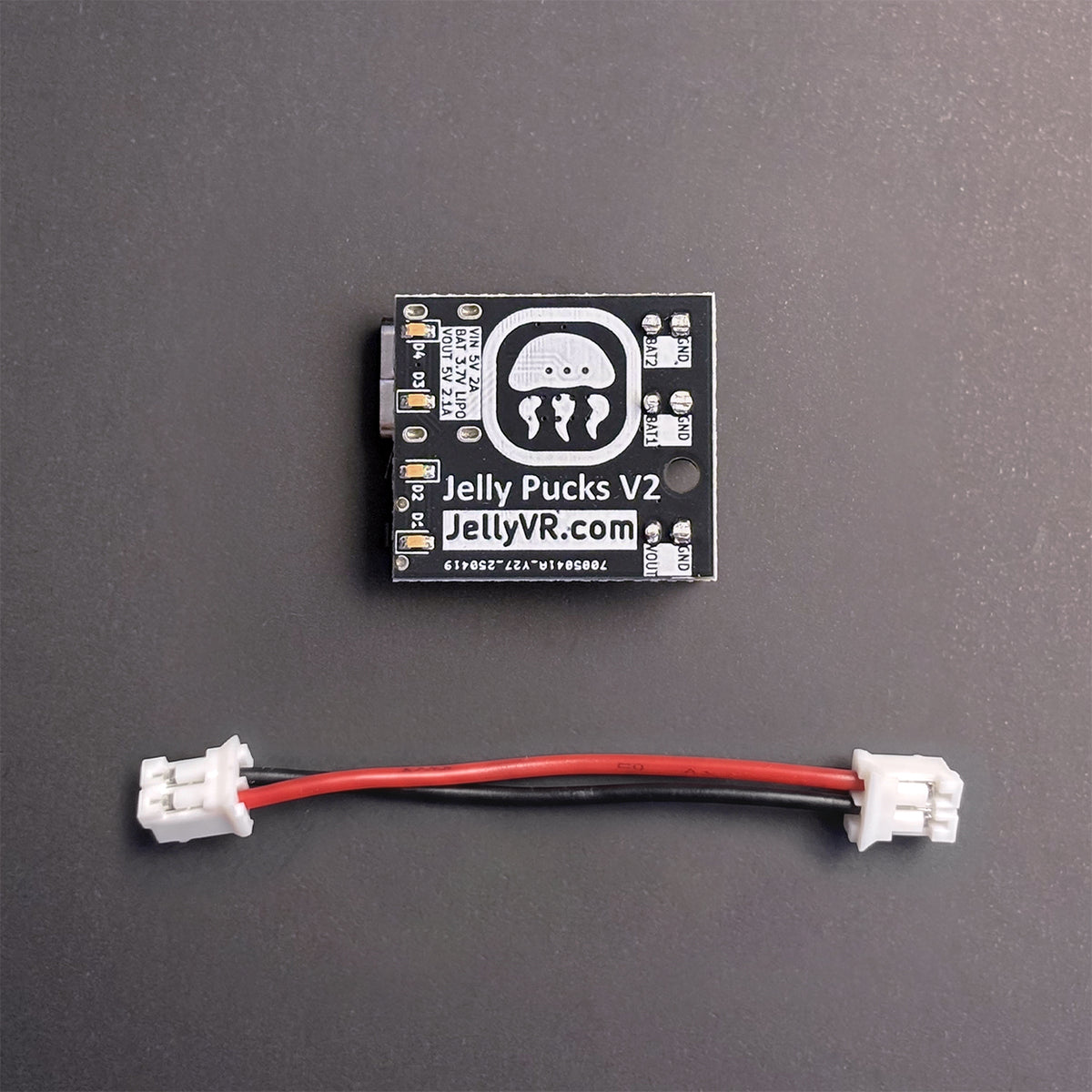

• Charging PCB
• Pogo pin PCB (power pins pre-soldered)
• 2p JST PH jumper cable (40mm)

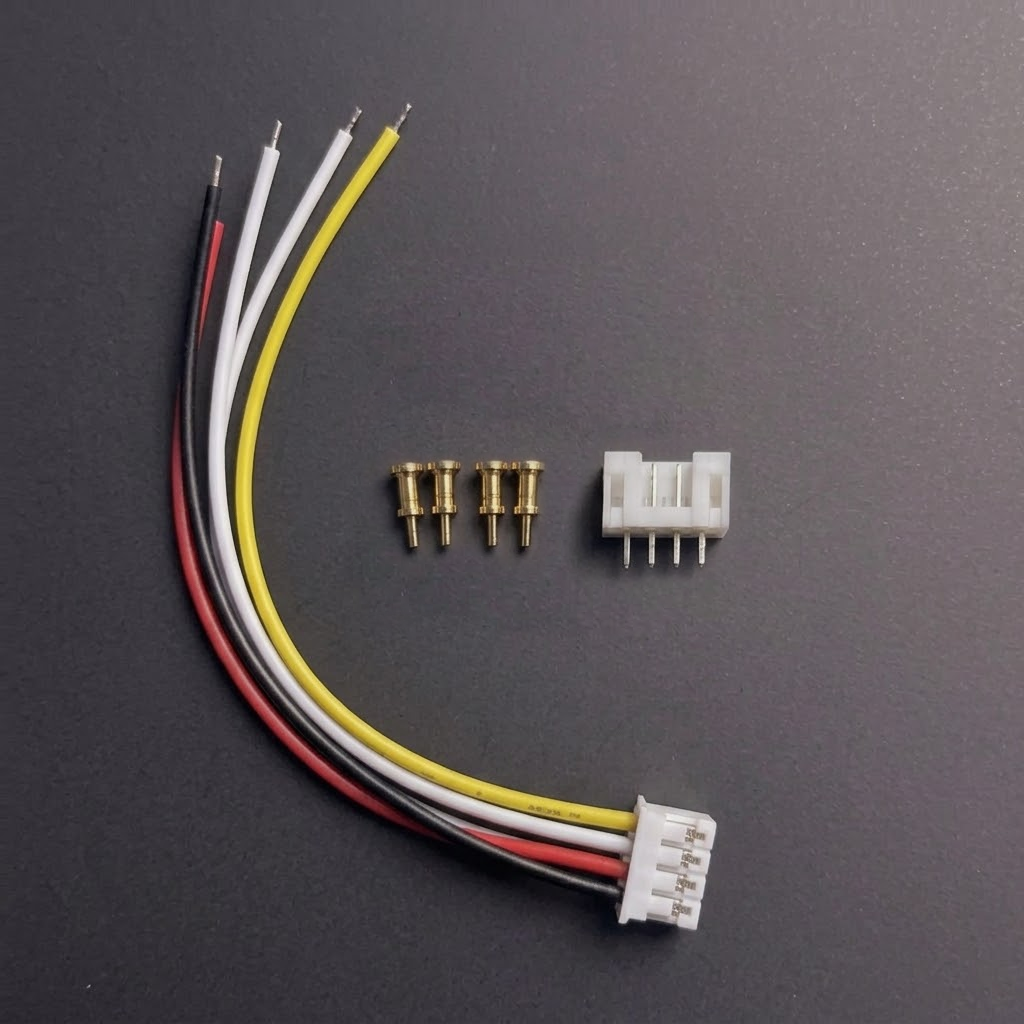

➕📦 Additions with 6 pin:
• 4 x pogo pin pads
• 4p JST PH socket
• 4p JST PH plug cable (100mm)

Specifications

📟 Technical Specifications:

Specification Value
Input

4.5-5.5V 2.1A
USB-C (power only sink)
Output 5V 2.4A
JST PH 2.0mm
Battery

2 x 3.7V (4.2V charged) LiPo
JST PH 2.0mm
Charge

Pink 4-LED gauge (25/50/75/100%)

Blinking plugged in: charging
Blinking unplugged: low battery
Control

Press button once to turn on.
Double press to turn off.

Auto power on when charging.

Auto shutdown when drawing less than 50µA.

📐 Measurements:

Measurement Value
Charging PCB 22.6mm × 20.2mm × 1.6mm
Pogo Pin PCB 9.2mm × 20.2mm × 1.6mm
Jumper Cable 40mm, 24 AWG
JST PH 2.0mm
Mounting M2 screw holes
(3mm self tapping screws for Jelly Puck V2 shells)
Total Weight 5g


View full details

📑 Documentation:

3D Print Files - Jelly Pucks V2

🧊 3D Models:

JellyPuckV2.3mf / STL Files: Download (ZIP 2.9mb)
Provided under Creative Commons CC BY-NC-SA 4.0

  • bottom*.stl - Shell bottom (battery side). Multi-filament and solid versions.
  • top*.stl - Shell top (pogo pin side). Multi-filament and solid versions.
  • interface*.stl - Pogo pin Interface. 2 and 6 pin versions.

  • chargingpcb.stl - Charging PCB model reference.
  • pogopinpcb.stl - Pogo pin PCB model reference.

  • screwjig.stl - For screwing interface and top together.
  • solderjig.stl - Aligns pogo pins for soldering. 2 and 6 pin versions.

🖨️ Print Settings:

  • Filament: PETG
  • Nozzle: 0.4mm
  • Layer Height: 0.2mm
  • Infill: 25%
  • Wall Loops: 6
  • Top Layers: 5
  • Bottom Layers: 3

🛠️ Assembly:

Before ordering parts to build your own, make sure you can print the files, the button tab moves, and they dry fit together with a click!
Full printing/assembly guide coming soon...
- Jelly 🚧🛠️
