Hardware Kit - Jelly Pucks V2

Hardware Kit - Jelly Pucks V2

75,00 CZK
75,00 CZK
Sale Sold out
Taxes included. Shipping calculated at checkout.

EU Shipped from within the EU, no customs fees or import duties.

⚙️ These are spare parts for Jelly Pucks V2

✅ All fastenings needed for 3 x Jelly Pucks

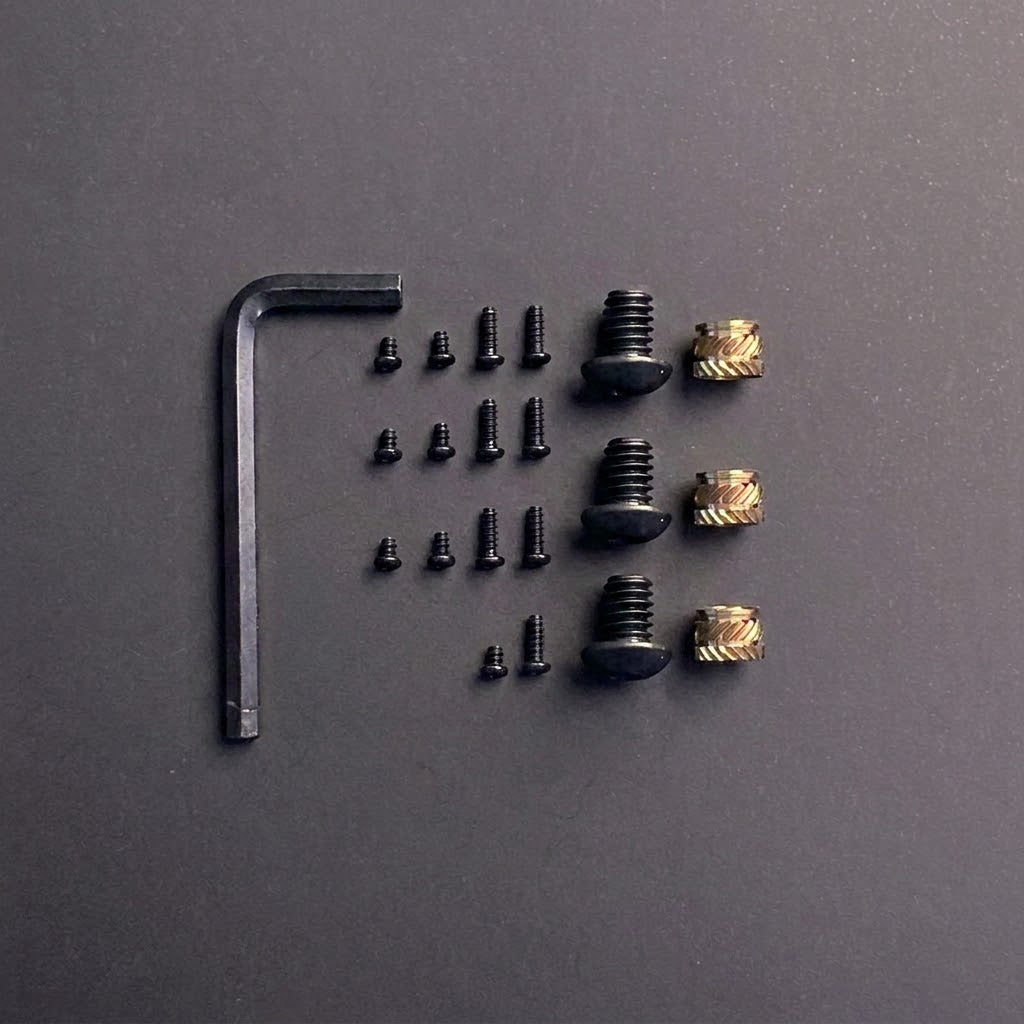

📦 Included:
• 7 x screw (3mm)
• 7 x screw (6mm)
• 3 x brass insert
• 3 x hex bolts
• hex key

Specifications

📐 Measurements:

Measurement Value
Screw (3mm) M2 (self tapping)
Screw (6mm) M2 (self tapping)
Brass Insert (6.4mm) 1/4"-20
Hex Bolt (3/8") 1/4"-20
Hex Key (74mm) 4mm
Total Weight 25g
View full details

📑 Documentation:

3D Print Files - Jelly Pucks V2

🧊 3D Models:

JellyPuckV2.3mf / STL Files: Download (ZIP 2.9mb)
Provided under Creative Commons CC BY-NC-SA 4.0

  • bottom*.stl - Shell bottom (battery side). Multi-filament and solid versions.
  • top*.stl - Shell top (pogo pin side). Multi-filament and solid versions.
  • interface*.stl - Pogo pin Interface. 2 and 6 pin versions.

  • chargingpcb.stl - Charging PCB model reference.
  • pogopinpcb.stl - Pogo pin PCB model reference.

  • screwjig.stl - For screwing interface and top together.
  • solderjig.stl - Aligns pogo pins for soldering. 2 and 6 pin versions.

🖨️ Print Settings:

  • Filament: PETG
  • Nozzle: 0.4mm
  • Layer Height: 0.2mm
  • Infill: 25%
  • Wall Loops: 6
  • Top Layers: 5
  • Bottom Layers: 3

🛠️ Assembly:

Before ordering parts to build your own, make sure you can print the files, the button tab moves, and they dry fit together with a click!
Full printing/assembly guide coming soon...
