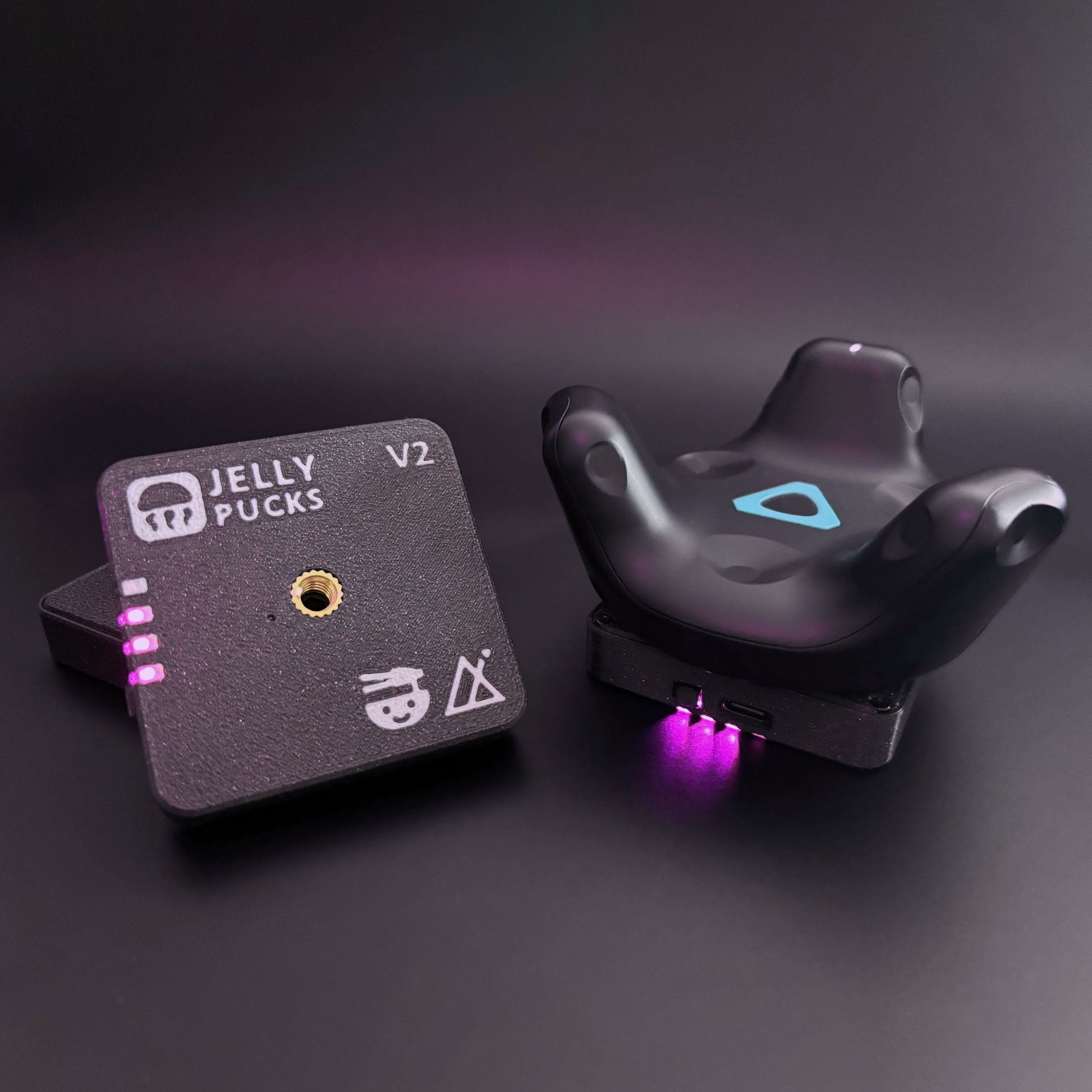

Jelly Pucks V2

Jelly Pucks V2

795,00 CZK
795,00 CZK
Sale Sold out
Taxes included. Shipping calculated at checkout.

EU Shipped from within the EU, no customs fees or import duties.

✅ Compact battery module for full-body VR tracking
✅ For HTC VIVE trackers (1.0, 2.0, and 3.0)
✅ 14-20 hours playtime, 2000mAh battery

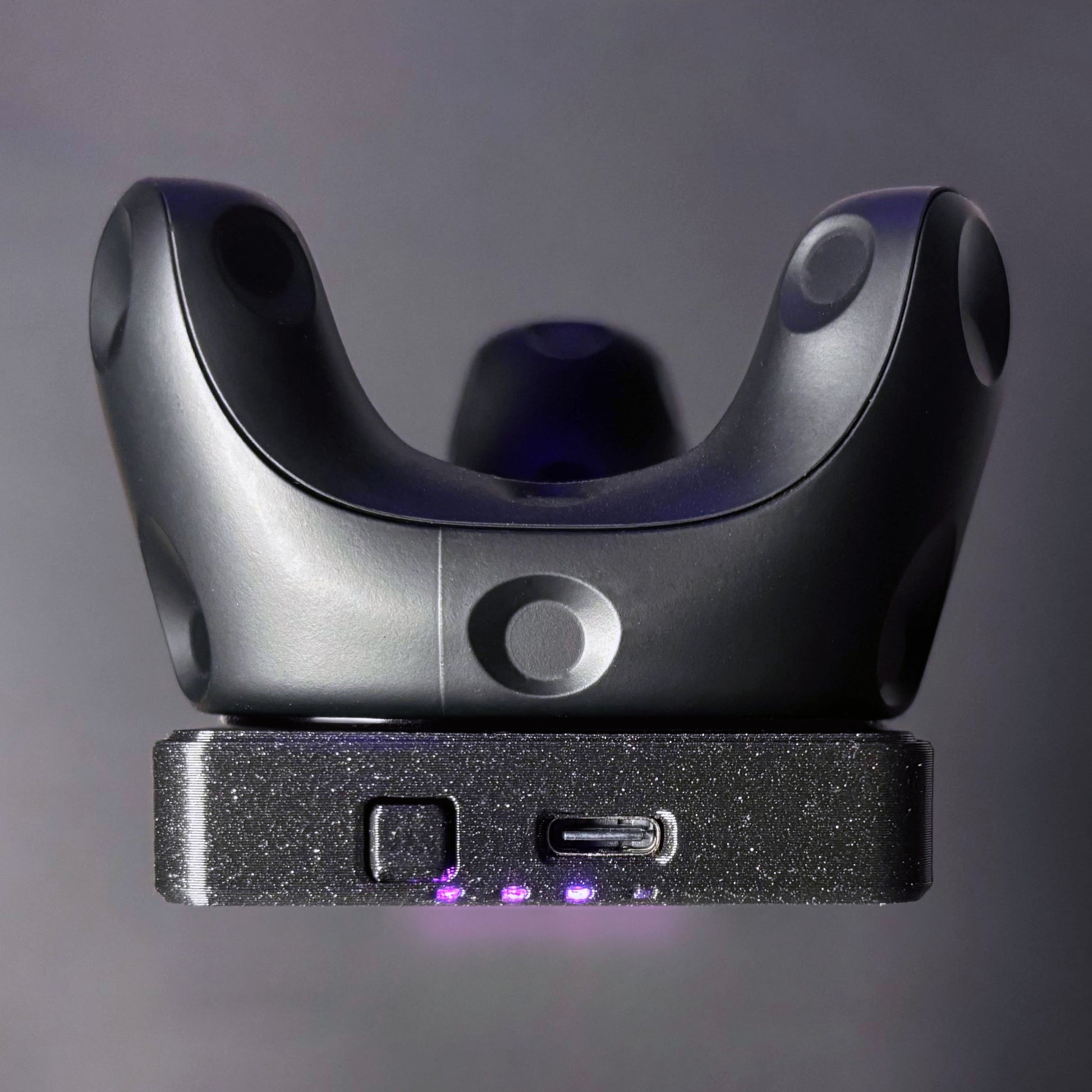

✅ USB-C pass-through charging supported
✅ On/off toggle button for manual power control

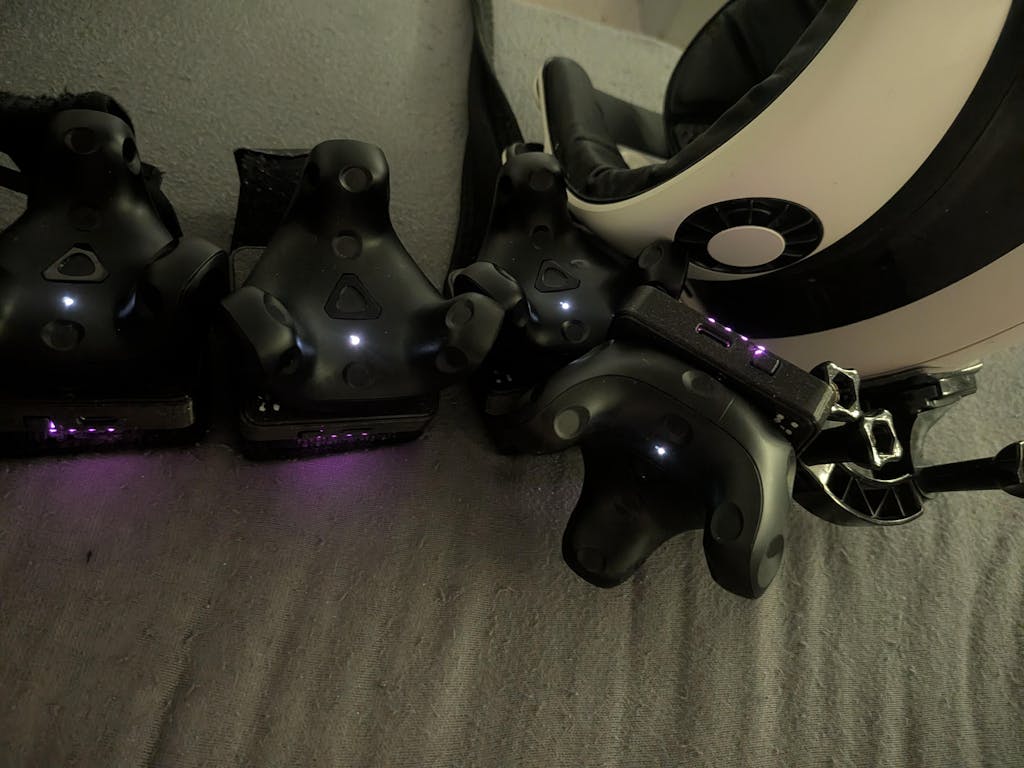

✅ Side LEDs show battery level
✅ Revives trackers with dead charging ports
✅ Fully custom designed hardware

🎉🍜💡 Friends of UdonVR and Rhythm!
Independent projects, credited with permission.

✴️ Important:
• Pucks sold individually
• Track straps not included
• HTC VIVE trackers not included

🚚 Delivery:
Orders dispatched weekly. Fully tracked international shipping, tracking number and updates sent via email.

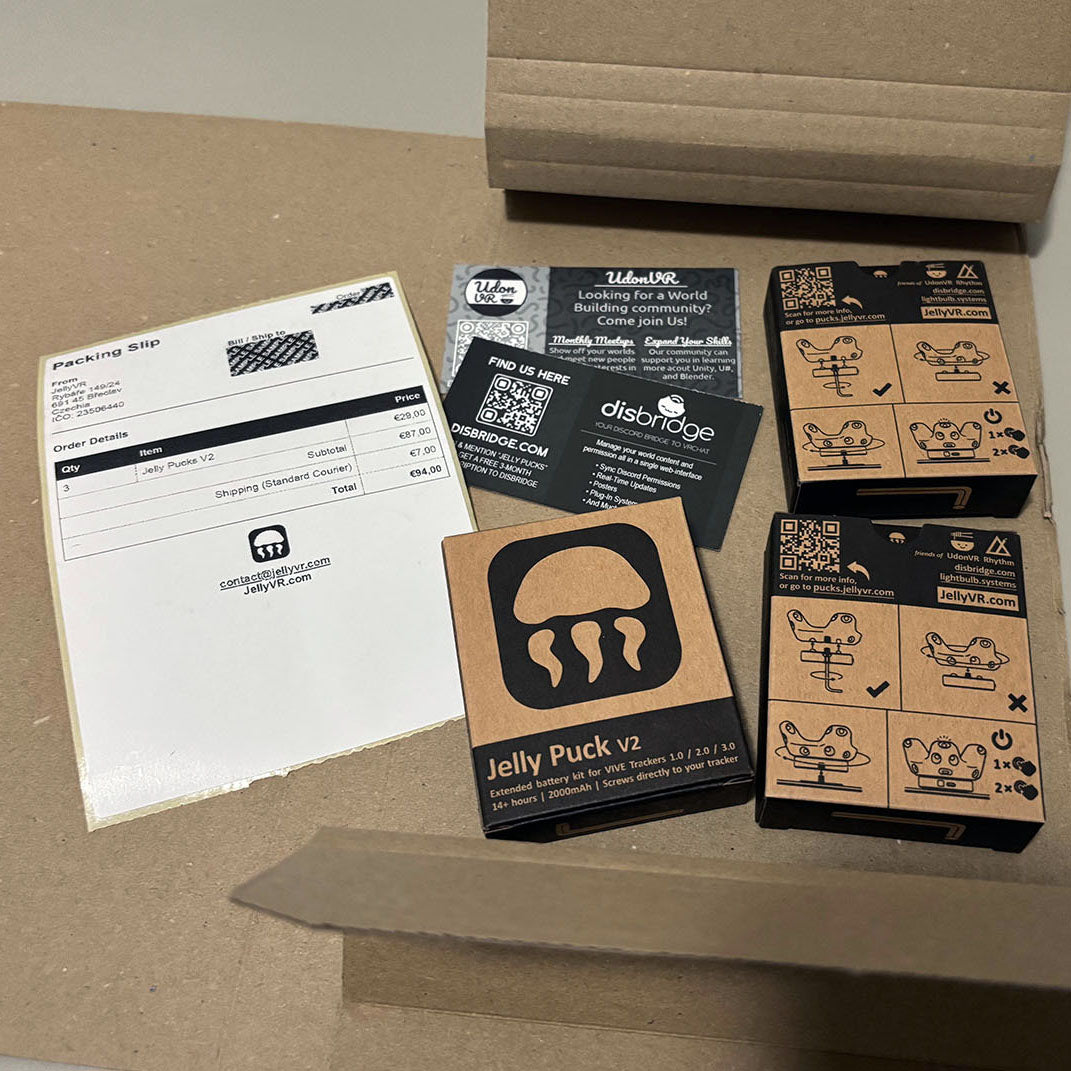

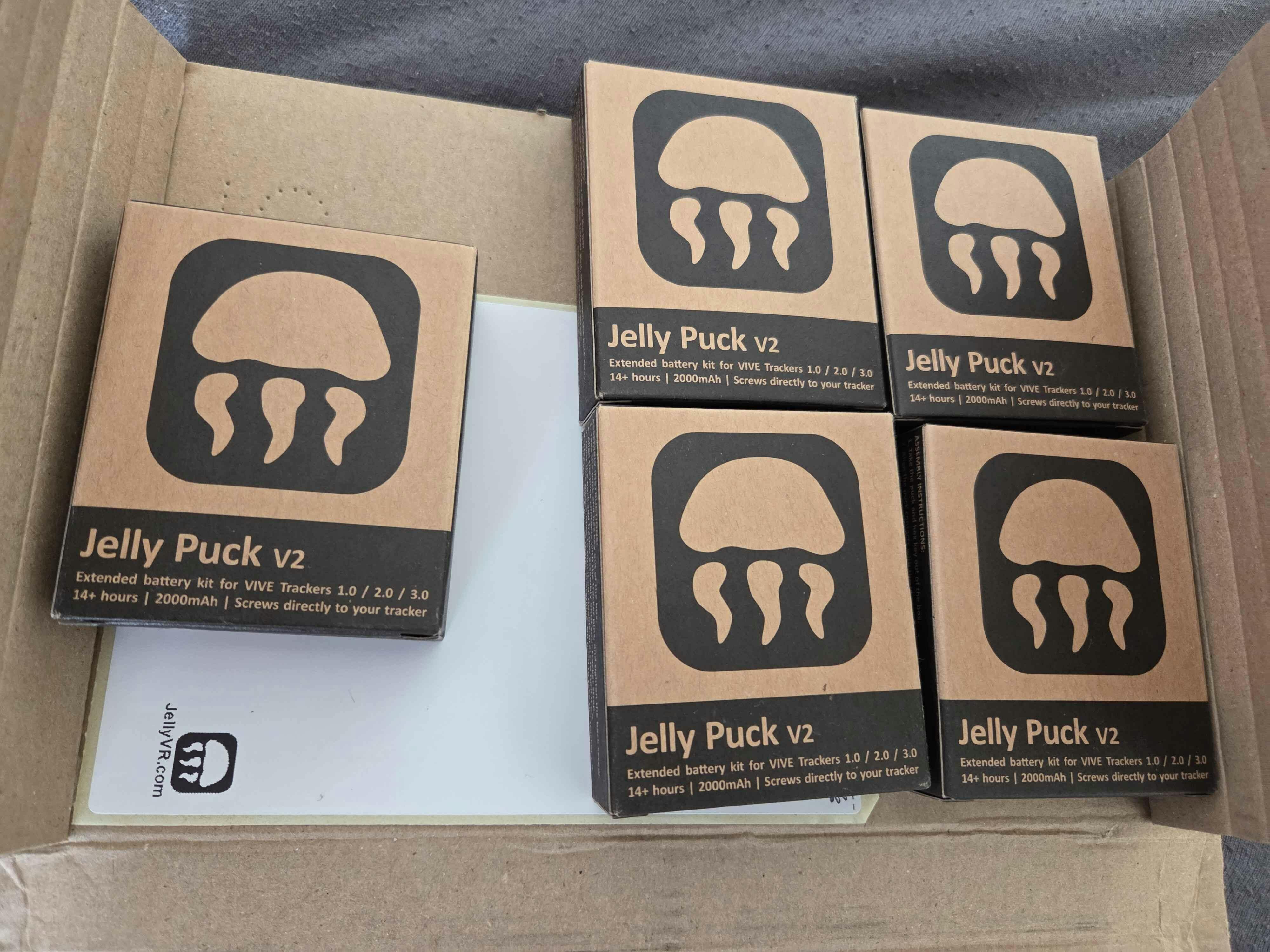

📦 Included with Each Puck:
• Jelly Puck (batteries included)
• 4mm hex key
• Packaging

ℹ️ Instructions:

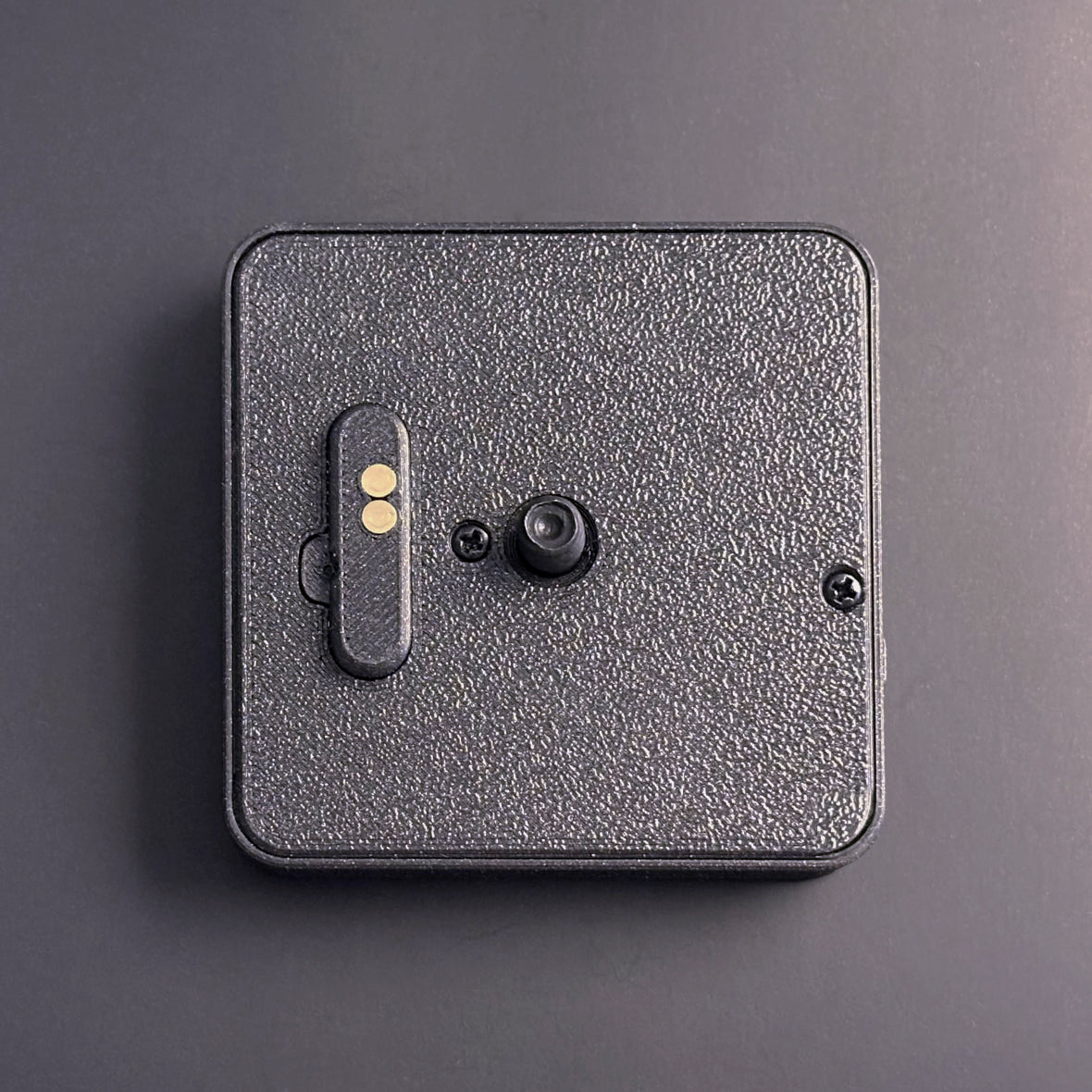

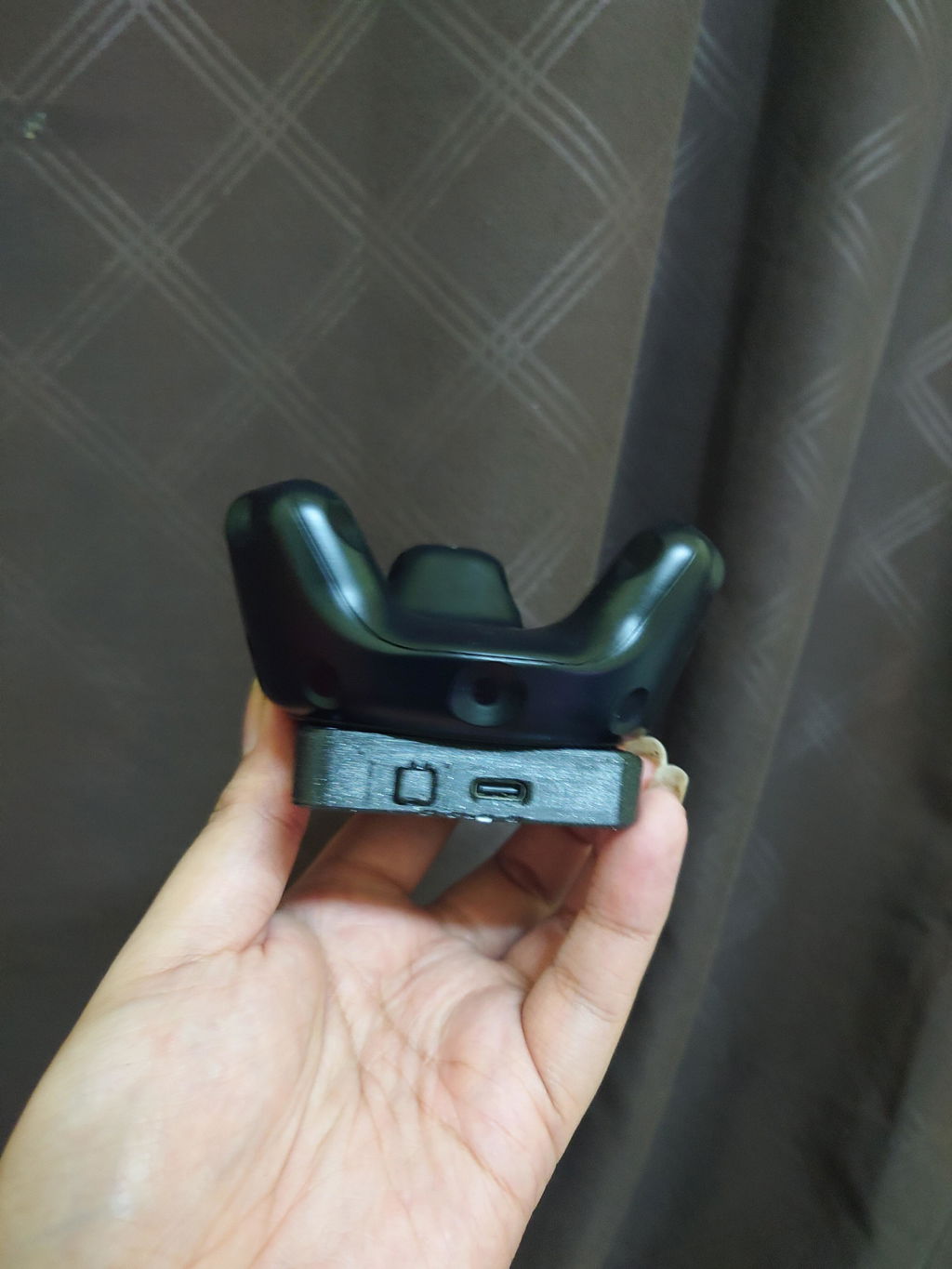

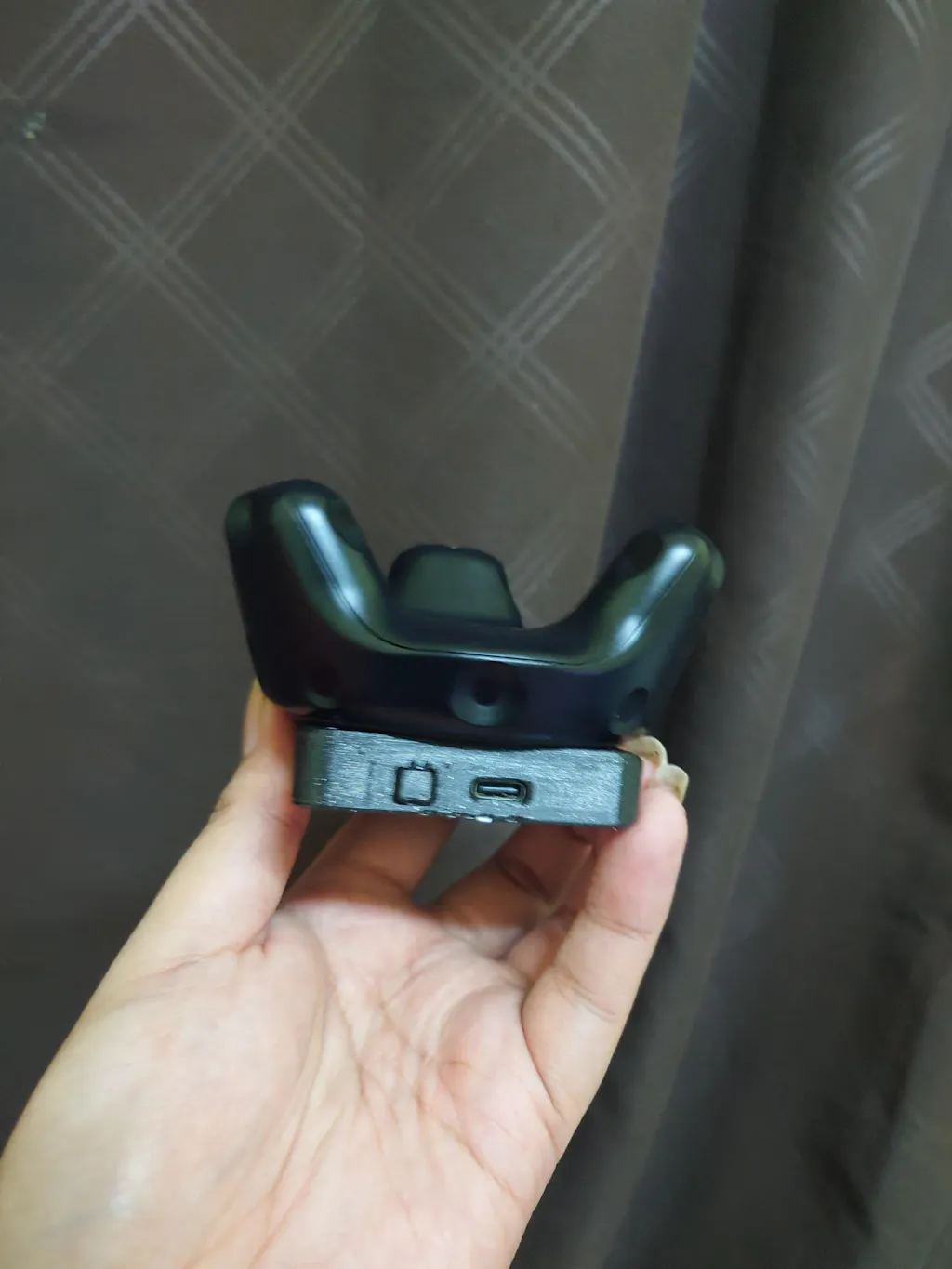

1. Align puck contacts with tracker pins, and tighten rear screw

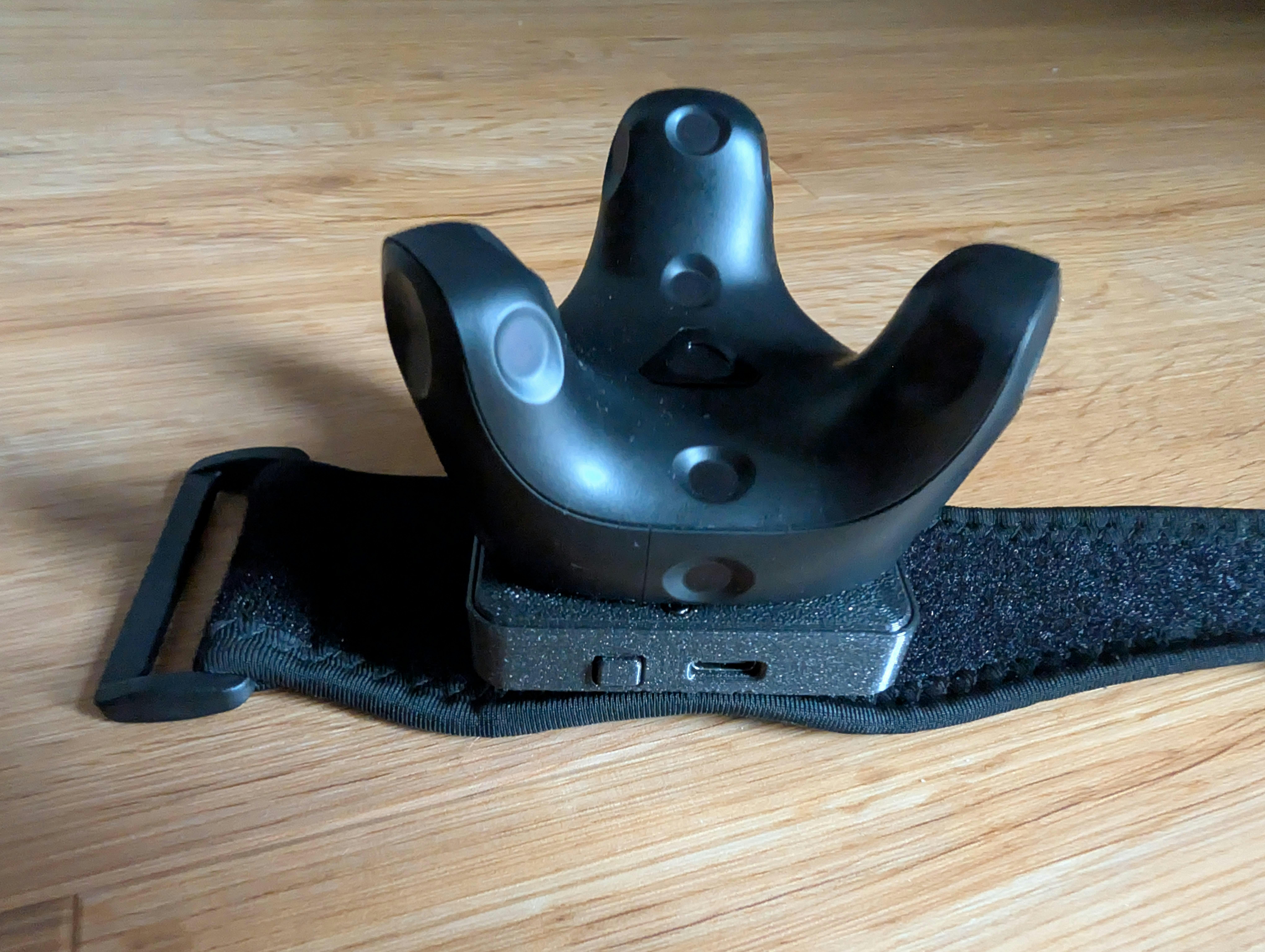

2. Twist puck and tracker assembly onto track strap
3. Press button once to turn on, double-press to turn off
4. Use USB-C to charge everything, no need to take the tracker off

📑 Legal Notice:
Not affiliated with or endorsed by HTC or VRChat.
Trademarks belong to their owners.

Specifications

📟 Technical Specifications:

Specification Value
Input 5V 2.1A (USB-C)
Output 5V 2.4A (vive tracker draws <500mA)
Playtime 14-20 hours (depending on tracker ver/health)
Charge Time ~1.2 hours
Capacity 2000mAh total (2 × 3.7V 1000mAh)
Protection Per-cell PCM (overcharge, over-discharge, short circuit)

📐 Measurements:

Measurement Value
Bolt / Insert 1/4″-20 UNC (standard camera screw)
Device Size 62mm × 62mm × 14mm (20mm with bolt)
Device Weight 70g
Packaged Weight 85g



View full details

📑 Documentation:

3D Print Files - Jelly Pucks V2

🧊 3D Models:

JellyPuckV2.3mf / STL Files: Download (ZIP 2.9mb)
Provided under Creative Commons CC BY-NC-SA 4.0

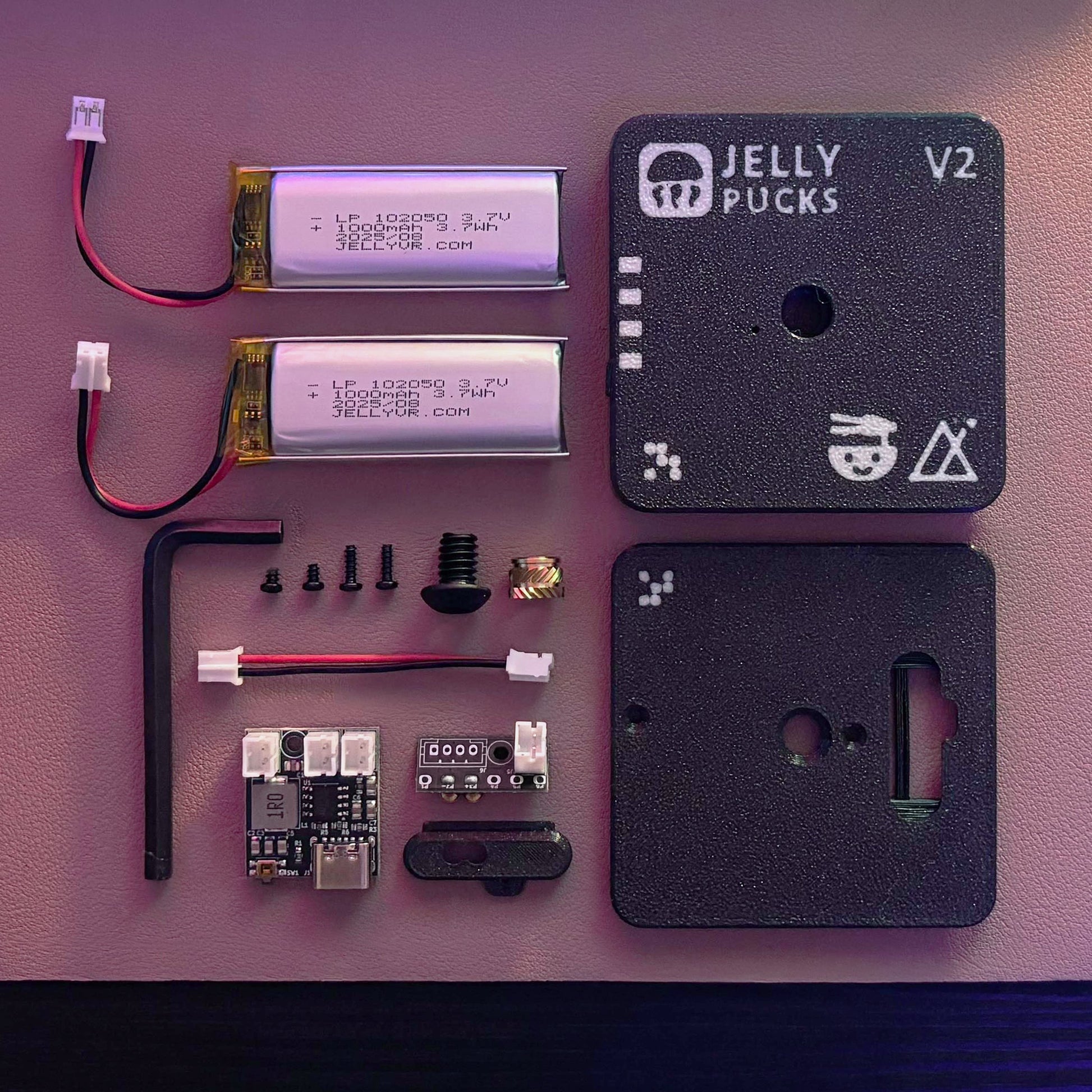

  • bottom*.stl - Shell bottom (battery side). Multi-filament and solid versions.
  • top*.stl - Shell top (pogo pin side). Multi-filament and solid versions.
  • interface*.stl - Pogo pin Interface. 2 and 6 pin versions.

  • chargingpcb.stl - Charging PCB model reference.
  • pogopinpcb.stl - Pogo pin PCB model reference.

  • screwjig.stl - For screwing interface and top together.
  • solderjig.stl - Aligns pogo pins for soldering. 2 and 6 pin versions.

🖨️ Print Settings:

  • Filament: PETG
  • Nozzle: 0.4mm
  • Layer Height: 0.2mm
  • Infill: 25%
  • Wall Loops: 6
  • Top Layers: 5
  • Bottom Layers: 3

🛠️ Assembly:

Before ordering parts to build your own, make sure you can print the files, the button tab moves, and they dry fit together with a click!
Full printing/assembly guide coming soon...
- Jelly 🚧🛠️

Lithium Battery Safety

Certification:

  • All JellyVR lithium batteries are covered by UN38.3 test reports and summaries, MSDS, and air and sea transport classification reports. Testing is carried out by CNAS-accredited, ilac-MRA recognised laboratories. Available to carriers and customs on request.

Charging:

  • Charge on a hard, non-flammable surface. Do not charge unattended.
  • Stop charging and disconnect if the unit becomes unusually hot, swells, smokes, or smells.

Damage:

  • Stop using any battery that is swollen, punctured, dented, crushed or has damaged wiring or insulation. Do not charge it.
  • Do not disassemble, puncture, crush, short-circuit, immerse or expose batteries to fire or temperatures above 60 C.
  • Store and use between 0 C and 45 C. Do not leave in direct sunlight or in a vehicle.

Accidental Exposure:

  • A ruptured battery can leak corrosive electrolyte. Rinse skin and eyes with water (eyes: 15 min, no rubbing), fresh air for fumes, then seek medical advice.
  • In the unlikely event of fire: flood with plenty of water. Smoke is toxic.

Disposal:

  • Do not dispose of batteries in household or general waste. Recycle in accordance with your local laws.
